Great Science Kit:
It’s a 16x16x16 LED CUBE diy Electronic Kit, a great science kit, soldering project kit. Children will love it and stay away from video games. It requires the buyer to solder by himself, which is very suitable for training hands-on ability and patience.
The size of the finished product after welding of this package is about 22x22x22cm, and the distance between the leds is 1.3cm.
More than 30 kinds of brilliant animation effects have been built into the masterboard. Users can display the animation after welding and plugging in the 5V 2A USB power supply.

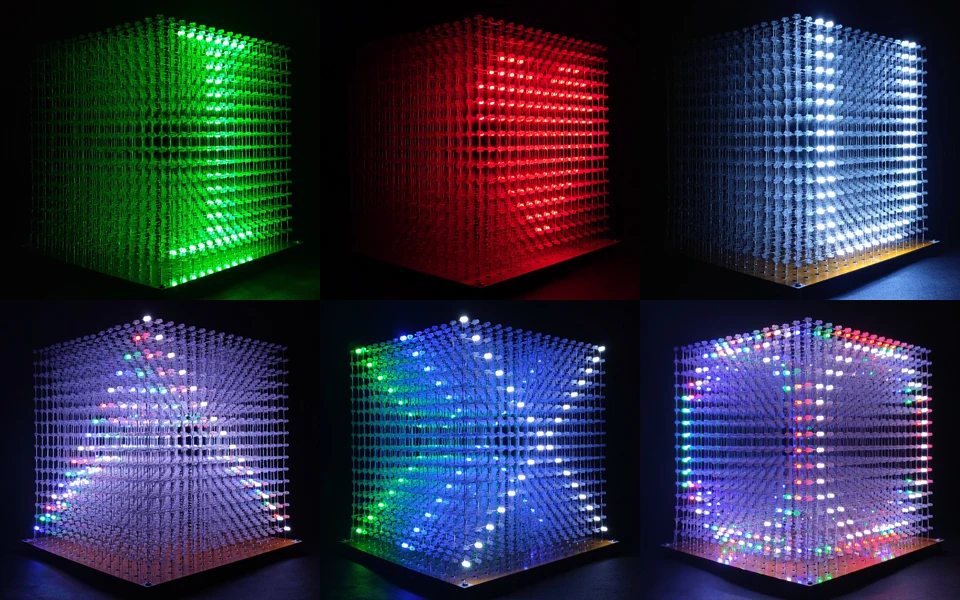

The following is the video effect of the 3D16MINI-MULTI finished product comparison:
![](http://ae01.alicdn.com/kf/H719da6228f794efba2c854659a962d2bW.jpg_.webp)
Used For:
It is suitable for students’ manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful small gift.
![](http://ae01.alicdn.com/kf/H15d17bf3f81b4eb8939046bdb7b78ff8H.jpg_.webp)

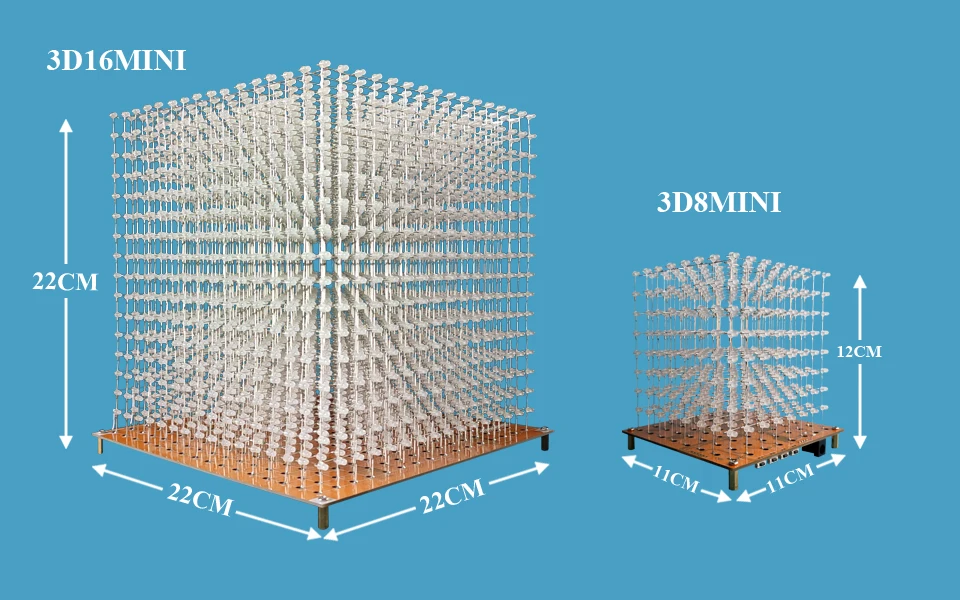

Very Large LED CUBE
Its size is 22x22x22CM, which is 8 times larger than 3D8MINI LED CUBE. It contains 4096 LEDs. Buyers need to be patient to solder 4096 LEDs.
![](http://ae01.alicdn.com/kf/H550895ac3cb64858a2fc9533204e4662h.jpg_.webp)

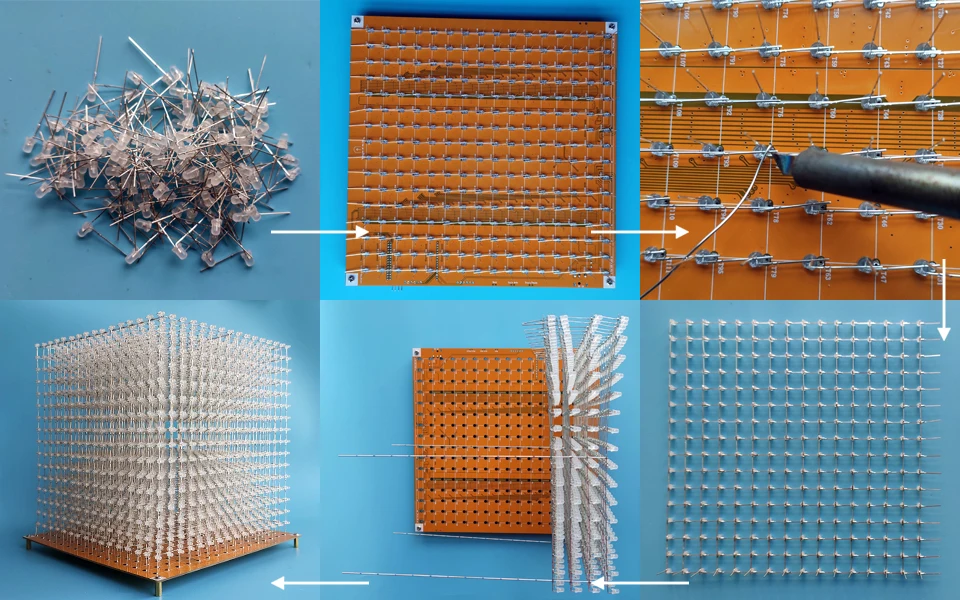

It Needs To Be Welded By The Buyer:
The PCB main board in this package has been well soldered and tested, and users only need to solder the LED lamp themselves, so users are only required to have a simple electronic technology foundation and soldering ability. PCB board with 256 round holes to fix the LED and make welding easier. We provide paper welding installation instructions.
You can also download the latest electronic information from the Google web disk address.
//drive.google.com/file/d/1FehrU0gsmhU8iI_Vsw3cfEBd40zLYctC
![](http://ae01.alicdn.com/kf/H2def2c8be3e14f5baa1cb9f2a18974a2e.jpg_.webp)

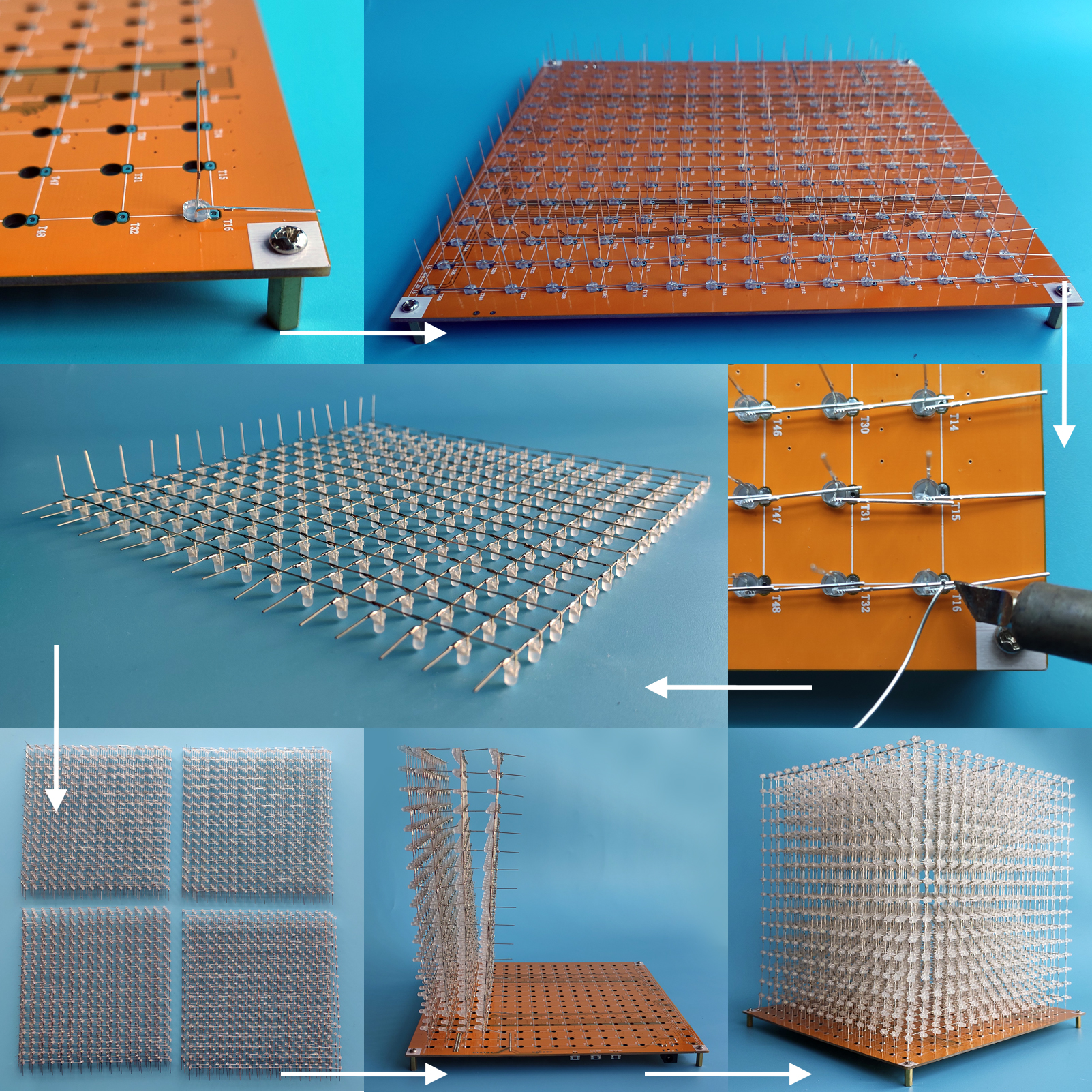

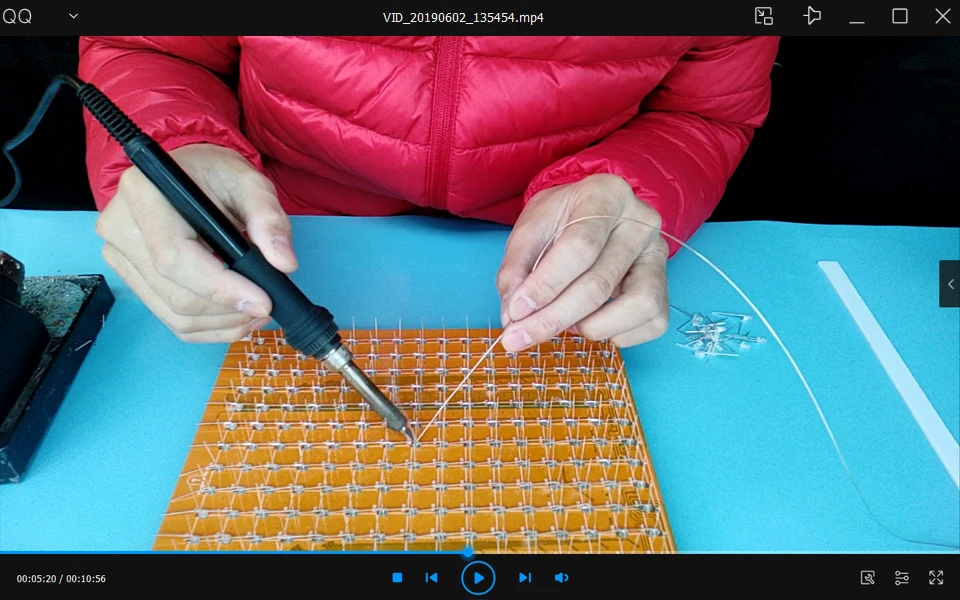

The following link is a video of the DIY installation process.
//youtu.be/fmtFV70aZk8
![](http://ae01.alicdn.com/kf/H1652558f77974693a63917ab58556ae0Q.jpg_.webp)

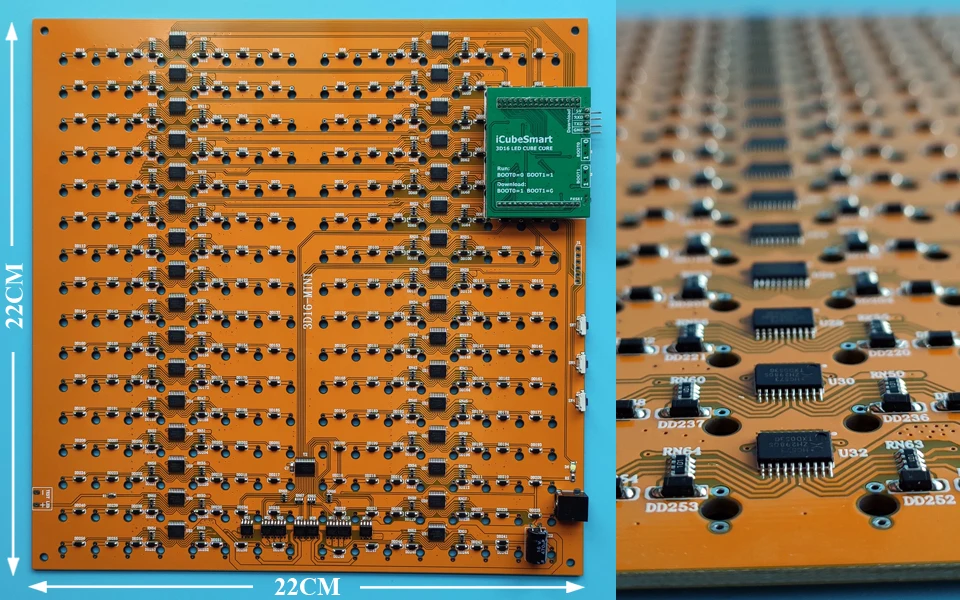

Hardware Composition:
Microcontroller: STM/GD/APM/32F103VBT6
Driver chip: 74HC573 + BR4953, the horizontal 16 layers are positive electrodes and the vertical 256 columns are negative electrodes.
![](http://ae01.alicdn.com/kf/Hd78cbb76f2e443cd8e9a573419f92ac8b.jpg_.webp)

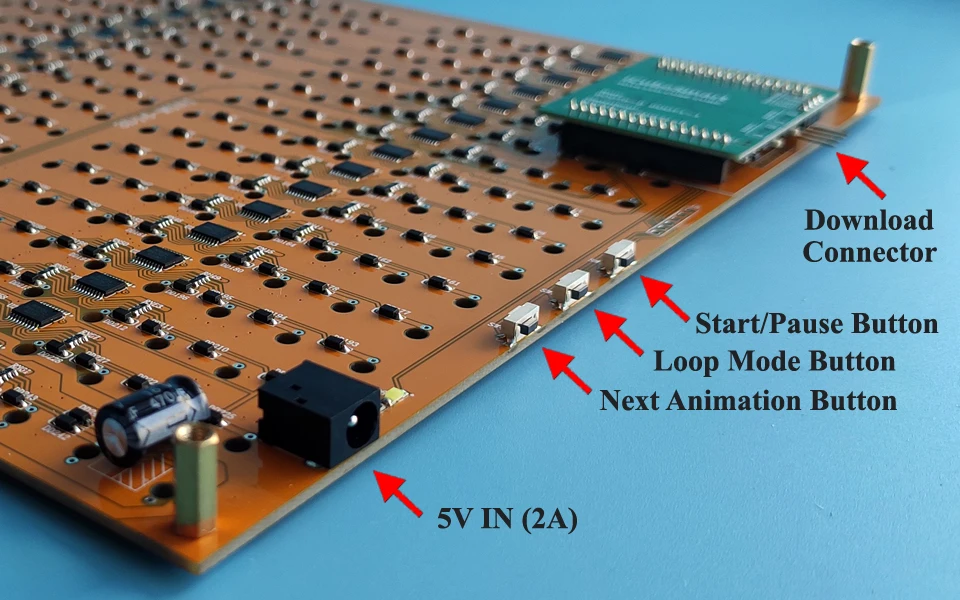

The masterboard is powered by 5V 2A USB; there are 3 keys on the masterboard to switch animation modes (key functions are start/pause, next animation, loop playback of single animation/loop playback of all animations respectively); the masterboard has a connector for downloading programs.
![](http://ae01.alicdn.com/kf/H2969463b2b364af398454c29a7a0074ae.jpg_.webp)
Displayed Patterns Allowed To Be Modified

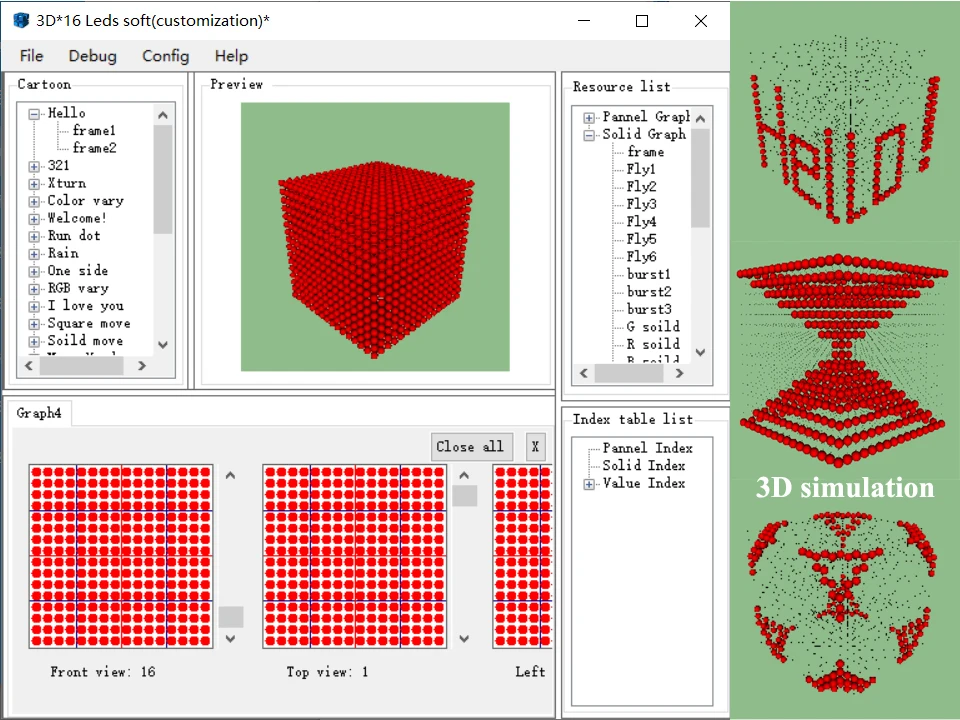

To enable every ordinary person to modify the displayed pattern (rather than a professional electronic engineer), we have created a 3D animation software on the PC computer. This is a quite simple software, in this software, you can use the mouse to light up or turn off each light on the light cube. After making the pattern with the mouse, package the coordinates for the movement of the pattern, the pattern will move; or, you can also use the mouse to make several 3D patterns, and then let these patterns display in sequence, thus forming the effect of 3D animation, which is much simpler than using C language to modify the displayed pattern.
![](http://ae01.alicdn.com/kf/H317975f2b385483ab30156ceb03e57a7Z.jpg_.webp)
Our Efforts Are Only To Make It Easier For Buyers To Succeed:
We have made a lot of efforts to make the installation as simple as possible for the buyer, and the installation is successful.
Upon receipt of the goods, you only need to weld the LEDs on the paper welding instructions and plug in the 5V 2A USB power supply to display brilliant lighting effects.

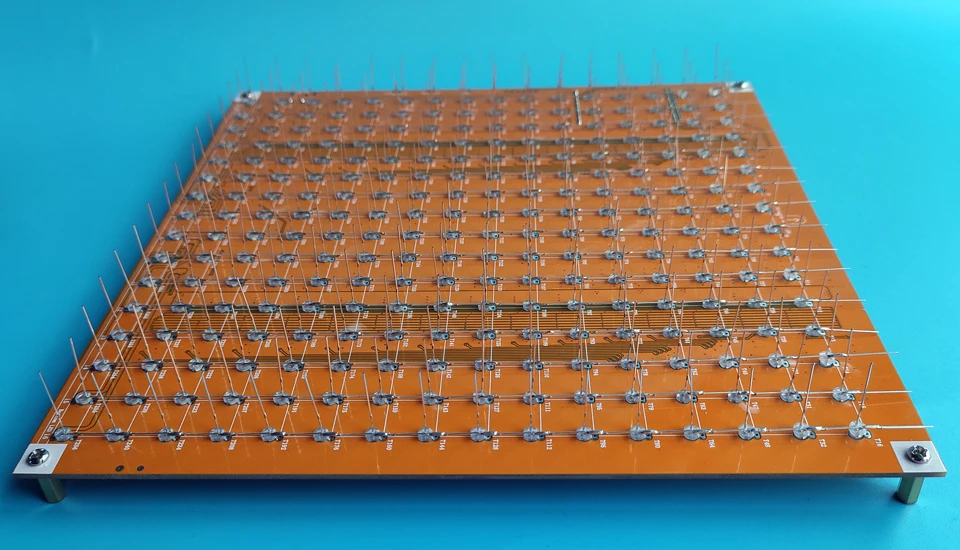

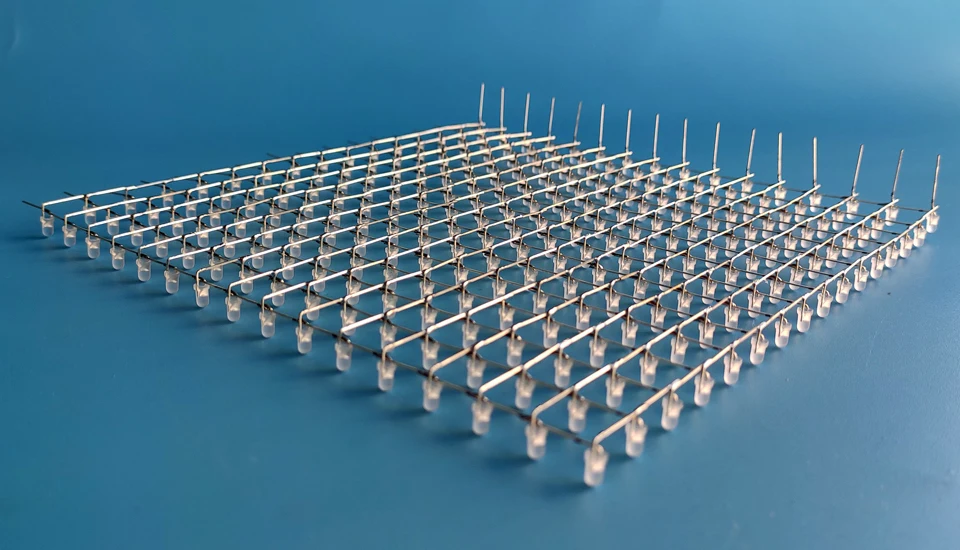

1, There are 256 circular holes on the PCB board to fix the LED and make welding easier.
![](http://ae01.alicdn.com/kf/H3ddb0eda414541a89fb7246d4637b36dG.jpg_.webp)
![](http://ae01.alicdn.com/kf/Hd8f5e270209748e5b098205d899628baw.jpg_.webp)

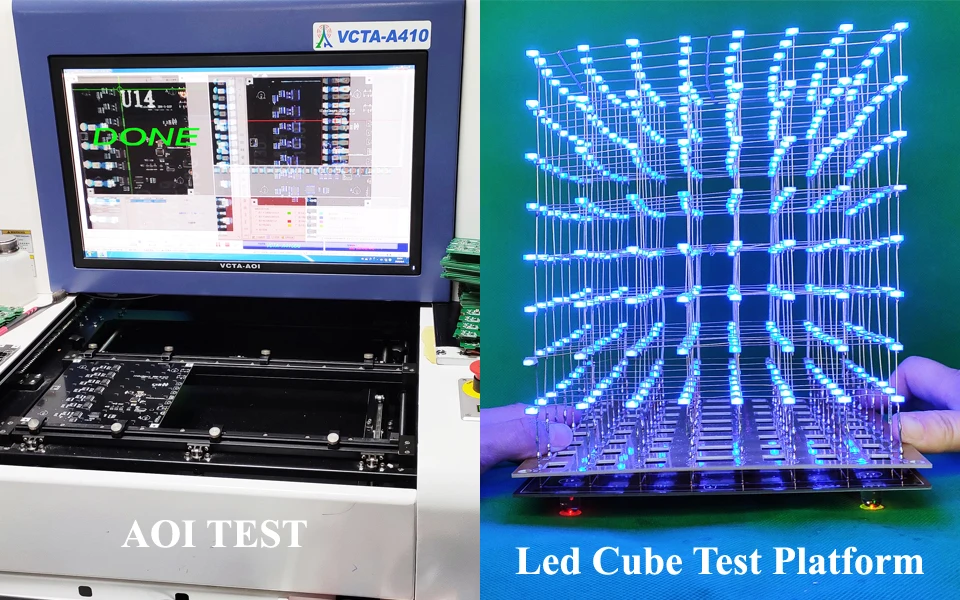

2, We tested the motherboard twice, using the AOI automatic test for the first time, and using the cube test platform for the simulation test for the second time.
![](http://ae01.alicdn.com/kf/Ha1fed158180345a2b99b6cbeefe9deb5l.jpg_.webp)

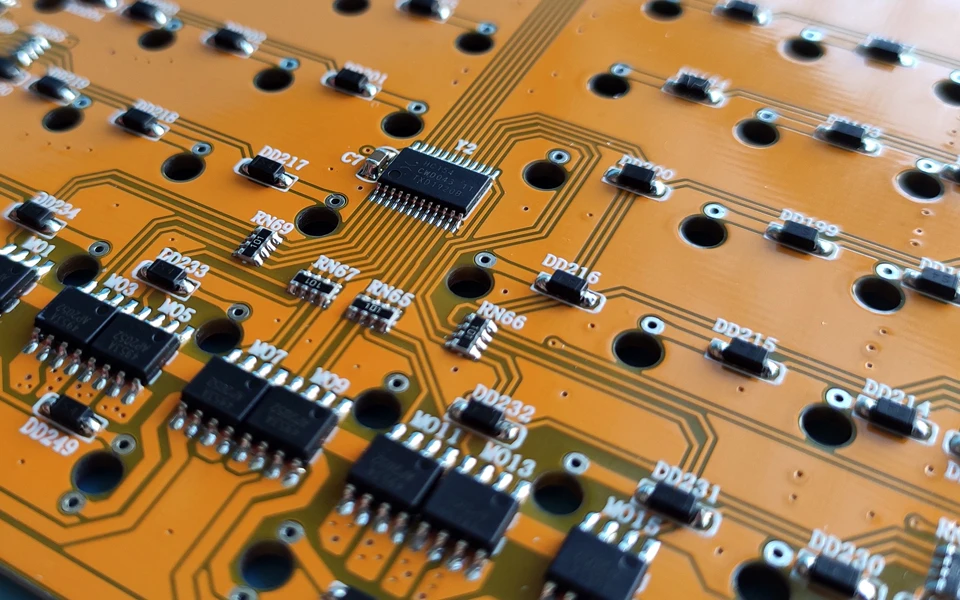

3, In order to reduce the reverse leakage of the LED due to too long soldering time, we added 256 protection diodes on the motherboard.
![](http://ae01.alicdn.com/kf/H2813f154b22b49709c378aba5c5b35d3A.jpg_.webp)
4, As a matter of fact, only 4096 leds will be used, but to prevent damage to leds during manufacture, each led is provided for standby.
5, We provide paper manuals in English.
Professional Services:
We have been engaged in the design and production of Led Cube for 9 years. We have designed various sizes of led cube as well as other electronic DIY products. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can leave us a message. We offer life-long technical support services for our DIY products.
![](http://ae01.alicdn.com/kf/Hb690297fb818490a866766848c1a5ca3u.jpg_.webp)
Description of different options:
Please note that the different options are priced differently and the accessories they include are also different.
3D16MINI-MULTI-KIT Options include:
1, Soldered and tested main board (size: 22*22cm) x1
2, USB download tool x1
3, USB DC cable x1
4, 0.8mm tinned iron wire x 1
5, White electronic line x 1
6, acrylic strip (used for bending LED anode) x1
7, 3D16MINI-MULTI Options: Foggy highlight 3mm LED, 1200 Red Led, 1200 Green Led, 1200 Blue Led, 1200 White Led (for the arrangement method of red, green blue and white LEDs, please refer to our welding instruction document. As a matter of fact, only 4096 LEDs will be used, but to prevent damage to LEDs during manufacture, each lamp bead is provided for standby)
8, Red and black wires for testing LED x1
9, Copper posts and screws x4
![](http://ae01.alicdn.com/kf/H1a154cd203294a499918d3160ab01352R.jpg_.webp)

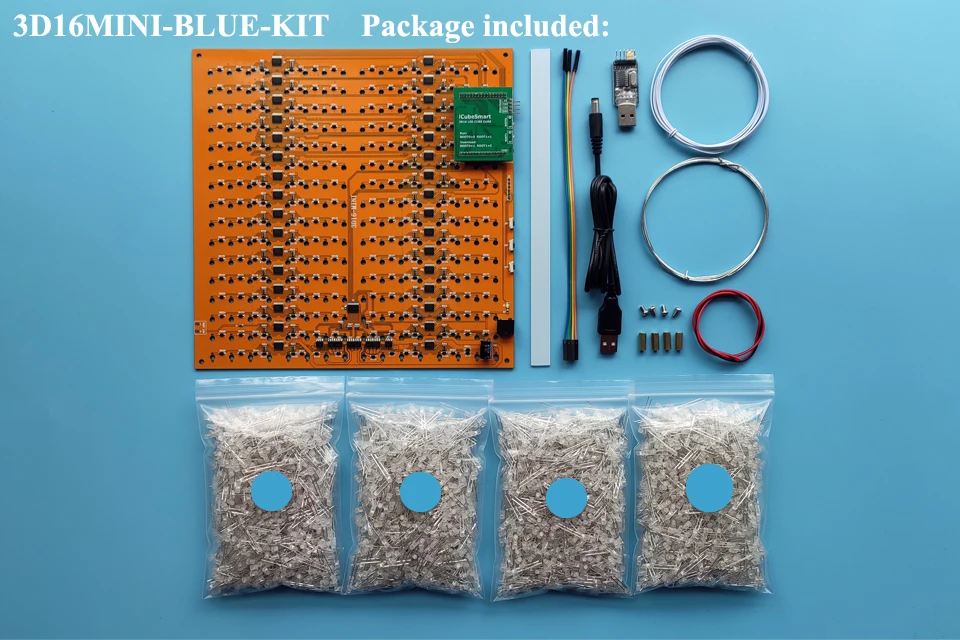

3D16MINI-BLUE-KIT Options include:
1, Soldered and tested main board (size: 22*22cm) x1
2, USB download tool x1
3, USB DC cable x1
4, 0.8mm tinned iron wire x 1
5, White electronic line x 1
6, Acrylic strip (used for bending LED anode) x1
7, 3D16MINI-BLUE Options: 5000 Blue Leds (4096 Blue leds used)
8, Red and black wires for testing LED x1
9, Copper posts and screws x4
![](http://ae01.alicdn.com/kf/S454d94b0bca9466f978084c9e0900d1aP.jpg_.webp)

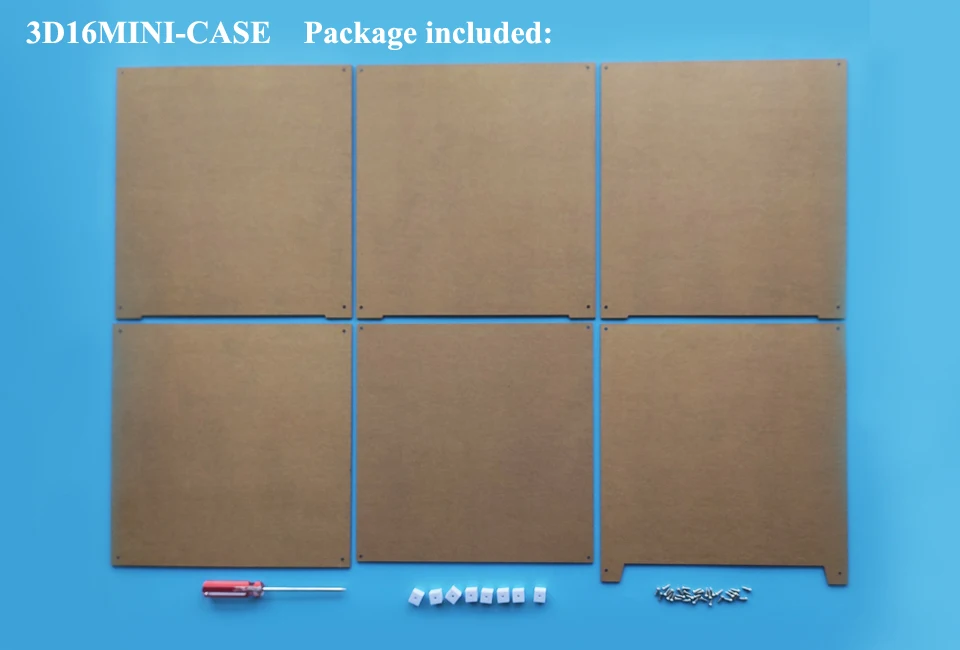

3D16MINI-CASE Options include:
Acrylic board x6
Screw x28
White plastic bracket x8
Screwdriver x1
![](http://ae01.alicdn.com/kf/S658bbf05ef944cefaa635f7ed27971fbS.jpg_.webp)

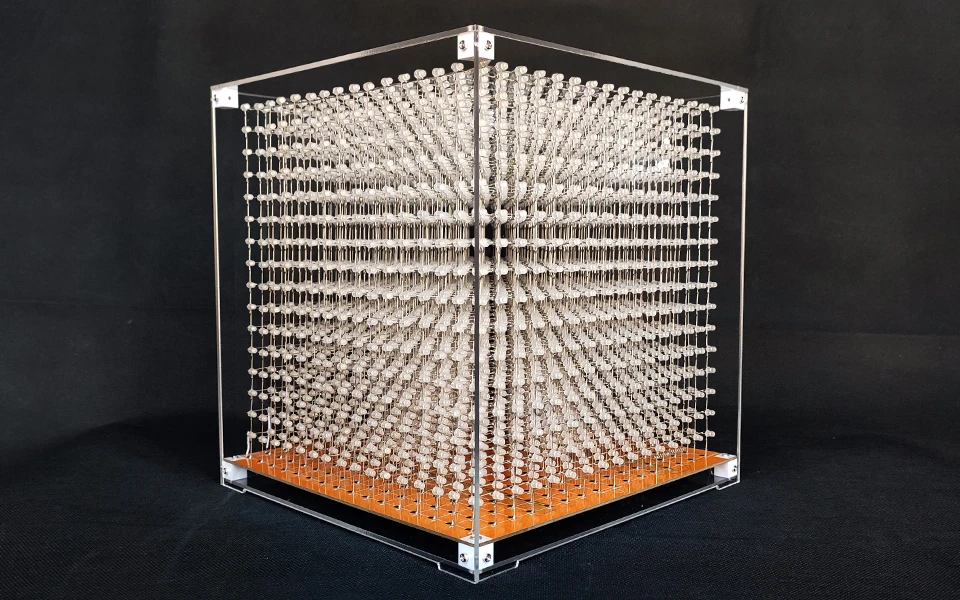

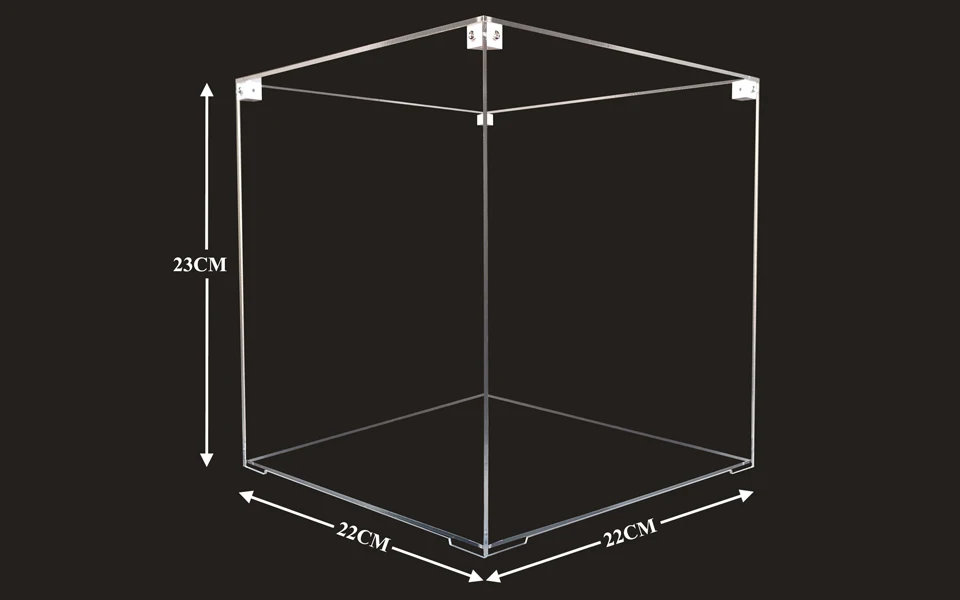

3D16MINI-CASE Size and Renderings:
![](http://ae01.alicdn.com/kf/Sa29f1c0310d844e1a3a782485f66025aY.jpg_.webp)
![](http://ae01.alicdn.com/kf/S404a3e367fab4f2c80fe67f562bd28deR.jpg_.webp)
