Product Details

LCD Display Battery Capacity Tester MAh MWh Lithium Battery Digital Battery Power Detector Module 18650 Battery Tester Type-C

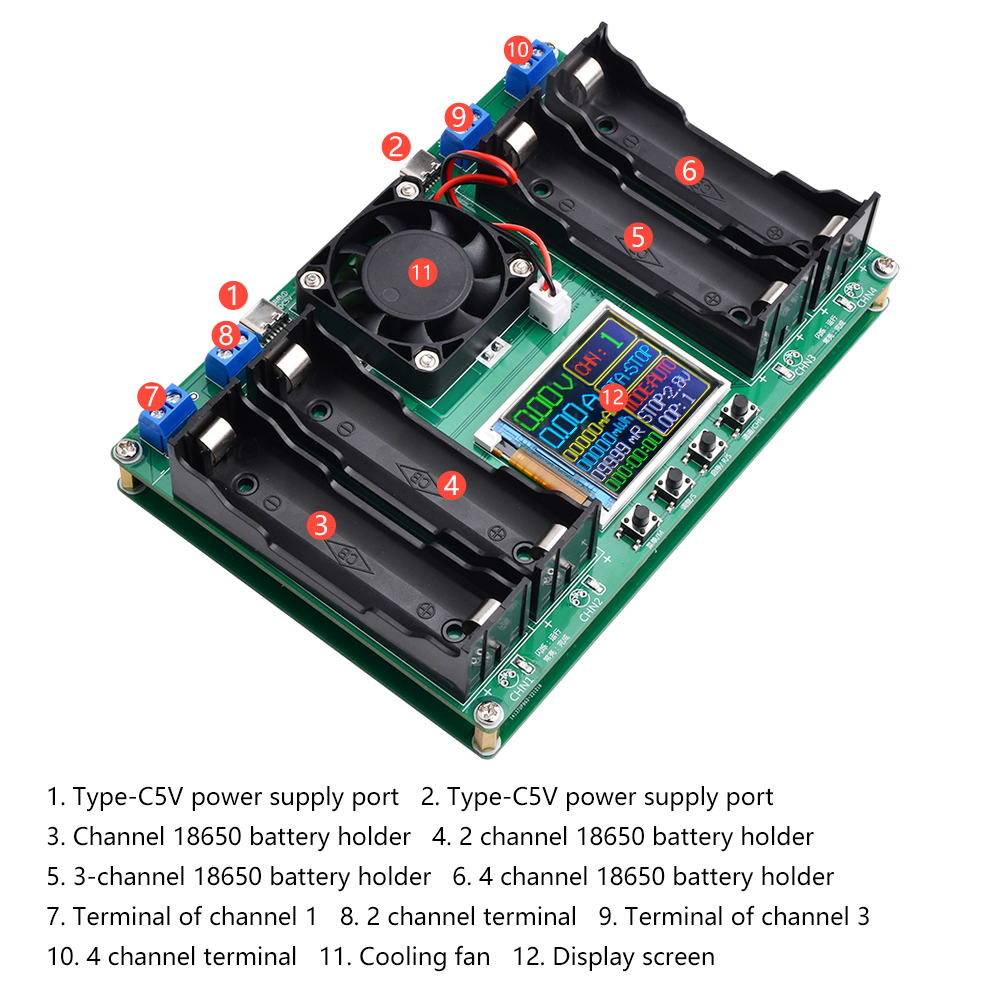

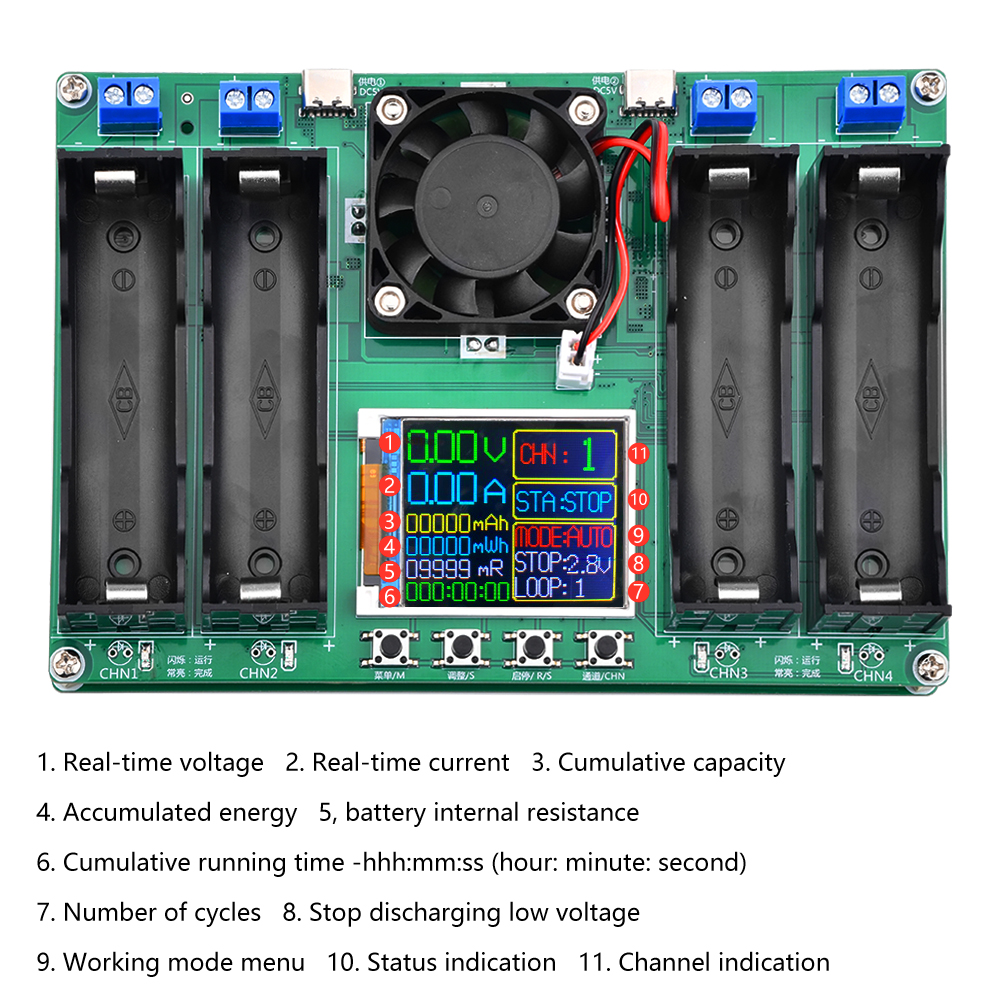

4 Channels Battery Capacity Tester

Instruction manual: //www.banber.com/gather/6374be9b2ee0e200077ec155

Features:

1.The product supports four-channel capacity and internal resistance measurement
2.Support separate charging and discharging, and support up to 9 charging and discharging cycles in automatic mode
3.Each channel is independent of each other, set separately, operates independently, and does not interfere with each other
4.18650 battery holder uses compact battery holder, suitable for flat-head battery measurement
5.Active cooling of fan supports overheating protection
6.Using DC two-wire method to measure internal resistance

Note:

lithium iron phosphate battery charging is not supported

Parameters:

Working voltage: DC5V
Applicable battery: suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2V
Power supply interface: Two-way Type-C power supply interface (power supply and power cord are provided)
System language: English/Chinese can be switched
Test quantity: 4-way charging and discharging measurement
Internal resistance measurement: support, use DC two-wire method to test internal resistance
Charging function: support, automatic cut-off charging when fully charged (lithium iron phosphate battery charging is not supported)
Discharge function: support, automatically stop when conditions are met, and the discharge current is not adjustable
Automatic charging and discharging: supported. The battery is fully charged at the end of automatic mode
Cyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode)
Status prompt: Supported
Cooling mode: fan active cooling
Overheat protection: support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gears
Discharge current: the maximum current is about 1A, which is not adjustable, and does not support independent transformation
Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V
Power-off saving: only save the set parameters, not the measurement data

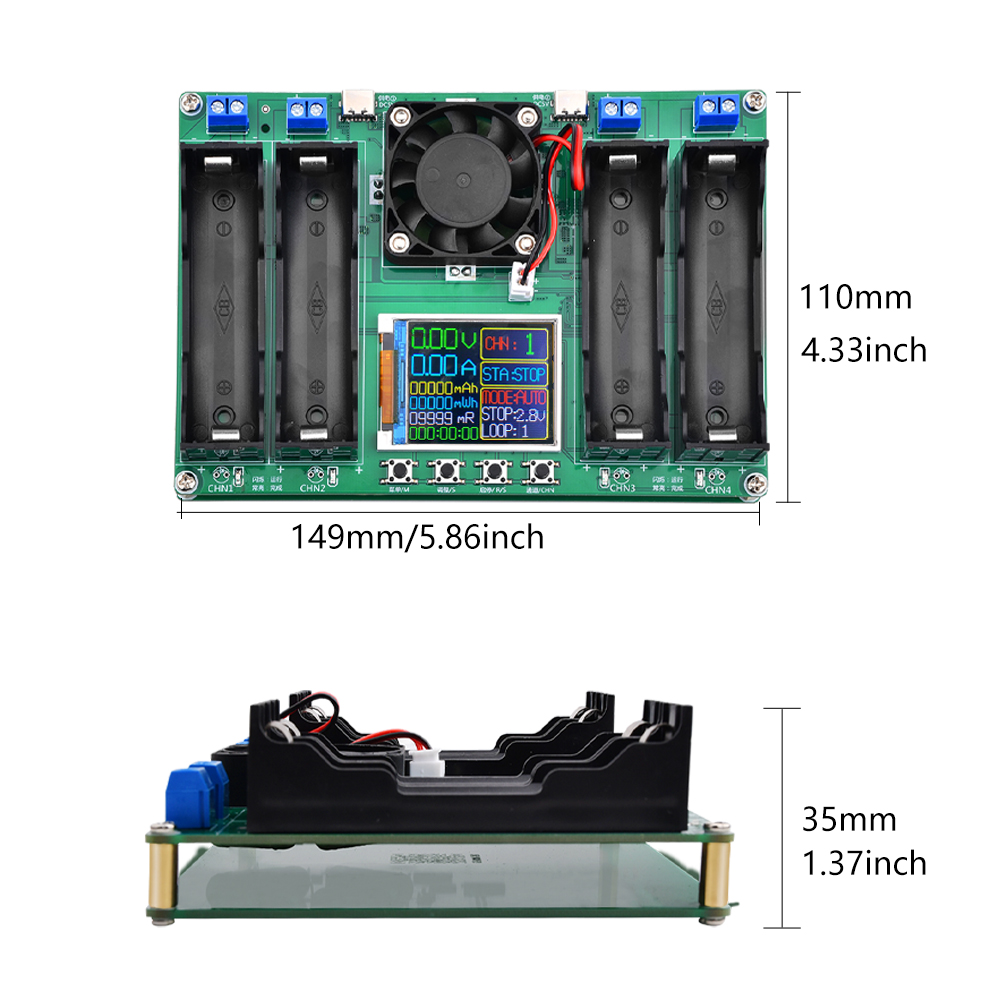

Product size: 150 * one hundred and three * 36mm
Package size: 182 * one hundred and twelve * 50mm

Package include:

18650 battery capacity internal resistance tester X1
Crowbar X1

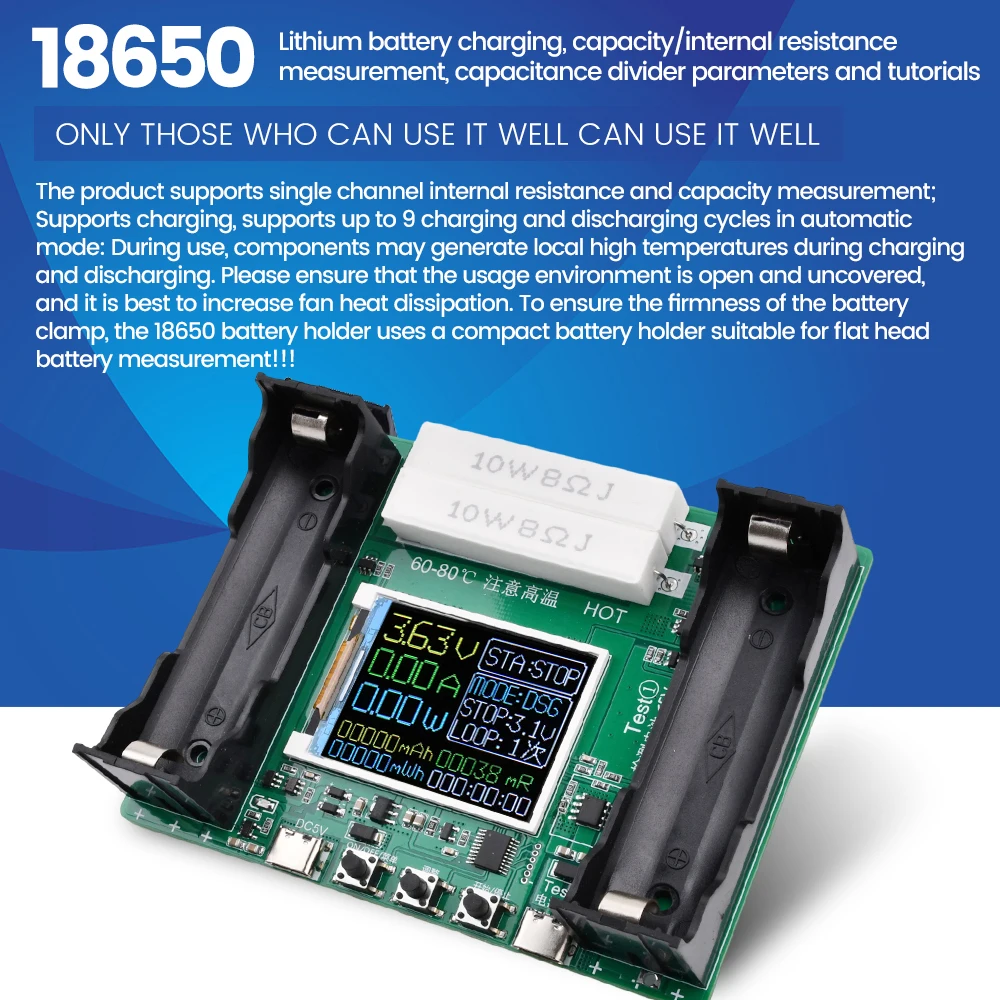

2 Channels Battery Capacity Tester

Information link: //www.banber.com/gather/63f08fc5b2c1a900078b96bd

Product Features:

The product supports single-channel internal resistance and capacity measurement
Supports individual charging, up to 9 charge and discharge cycles in automatic mode
The internal resistance is tested by DC two-wire method, which can be switched between Chinese and English
The 18650 battery holder uses a compact battery holder for flat head battery measurements
The maximum charge and discharge current is about 1A
Note: During use, there are components in the charging and discharging process that will produce local high temperature, please ensure that the use environment is open and uncovered, if you can increase the heat dissipation of the fan. To keep the battery clip secure, the 18650 battery holder uses a compact battery holder for flat-head battery measurements!!! Lithium iron phosphate battery charging is not supported

Power on/off:

(1) Automatic power on when powered on
(2) Long press the “ON/OFF/Menu” button to shut down the computer while it is turned on.
(3) When the power is not turned off, click the “ON/OFF/Menu” key to turn on.
Chinese and English interface switching:
(1) Shut down
(2) Press and hold the “Adjust” button to power on, release the button after the screen lights up, and wait 10 seconds to turn off after booting
(3) Restart the system to complete the switchover.

Basic parameters:

Working power: DC5V external power supply or 18650 battery (both need to bring their own)
Applicable battery: meet the stop discharge voltage 2.5~3.5V, 4.2V charging batteries are applicable
Power supply interface: Type-C interface, power supply line self-provided (C port mobile phone line)
System language: English/Chinese switchable
Number of tests: 1-way charge, discharge measurement (right battery only)
Internal resistance measurement: Yes, the internal resistance is tested by DC two-wire method
Charging function: support, 1-way program control up to about 1A charging; 1 hardware control up to approximately 0.5A charging
Discharge function: Yes, only 1 channel supports up to about 1A discharge Automatic stop when the condition is reached
Automatic charging and discharging: Yes, fully charged battery at the end of automatic mode (stop voltage set 2.8V or above)
Cycle charging and discharging: support, 1~9 cycles adjustable
Status Tip: Yes
Stop discharging voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V,
3.3V, 3.4V, 3.5V a total of 11 adjustable steps
Discharge current: two resistors, up to about 1A current, non-adjustable, do not support independent transformation
Charging voltage: special battery charging chip control, up to about 0.5A/1A charging, full voltage 4.2V
Power failure saving: Only the setting parameters are saved, and the metering data is not saved

Shipping List:

18650 Battery Capacity Internal Resistance Tester X1
